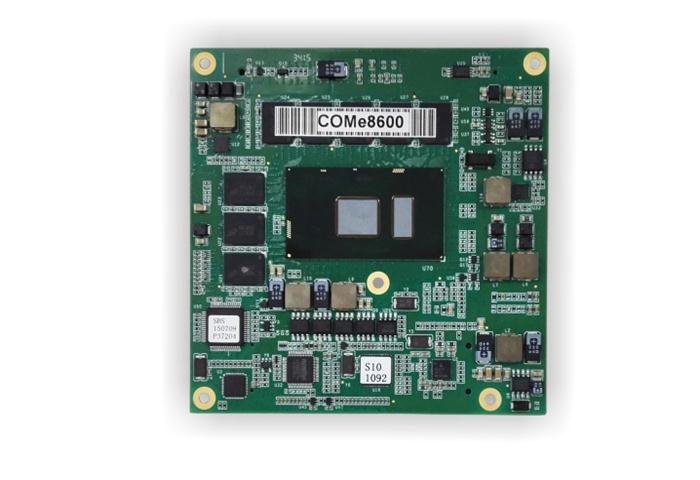

SysCentreModule Series—COMe8600

Contact us

Specifications such basic needs, but in a function with minor discrepancies, please contact sbs@sbs.com.cn us, we might have a special OEM product specifications meet your requirements.

Features

Rugged, fanless design

COM Express® Compact

Ultra low power consumption

High performance and flexibility

X86 software compatibility

Long embedded lifecycle support

Specifications

Hardware

6th Generation Intel® CoreTM i7/i5/i3 processor ULT

Onboard 8GB DDR3L memory(extended up to 16GB)

Intel® HD Graphics with DirectX 11.2, OpenCL 2.1 and OpenGL 5.0 support

Up to 3 independent displays: DDI(optional VGA), DP1.3/HDMI 1.4/DVI, dual channel LVDS

Support Intel® Turbo Boost, vPro, Hyper-Threading, Virtualization and SpeedStep® Technology

6 PCI Express x1 lanes

10/100/1000Mbps Ethernet

4 SATA 6GB/s ports

8 USB 2.0 ports, 4 USB 3.0 ports

Intel® High Definition Audio

Support SMBus,I2C, LPC Bus

2 UART, 8 GPIO

Support user configurable watchdog timer

Single +12V power supply, optional +5V stand-by for ATX function


Software

Various OS support, including SBS Linux, VxWorks, Windows…

Other

Extended operating temperature range: -40°C ~ +85°C

Dimension:95mm(L) x95mm(W)
